Debugging apps with Shopify App Bridge

Shopify App Bridge includes a number of features to help you debug your app.

If you’re using Typescript, then Shopify App Bridge is fully typed. If you’re not using Typescript, then Shopify App Bridge includes a development version which throws informative, Typescript-like errors.

Under the hood, Shopify App Bridge uses Redux to manage actions and app state. All actions dispatched by your app are recorded by Redux, and you can use Redux DevTools to review, replay, and dispatch actions to help you debug.

Using the development version for informative errors

The development version of Shopify App Bridge adds a validation system that throws informative, Typescript-like errors.

Example error

Creating a Toast with the following options is invalid:

Toast.create(app, {
  duration: '1000',
  message: 'Hi! (quickly)',
});

If you tried to create a Toast with the example above, then the development version of App Bridge would throw the following error:

"APP::ERROR::INVALID_OPTIONS: `type_error_expected_integer` thrown for path: ['duration'] and value: `1000`"

As you can see, the Toast action set expects the duration option to be an integer, but the value in the example is a string.

Without the development version’s validation system, Shopify App Bridge will not throw errors for invalid options.

Using ES modules

If you’re importing Shopify App Bridge by using ES modules, then add NODE_ENV=development to your build tooling configuration.

You can also use the development version without modifying your NODE_ENV variable by importing createApp from the development subdirectory:

import createApp from '@shopify/app-bridge/development';

Using the CDN-hosted or UMD versions

If you’re loading Shopify App Bridge from a CDN like Unpkg, or consuming the UMD build from NPM, then append .development to the file name:

  • Original URL — <https://unpkg.com/@shopify/app-bridge@1.6/umd/index.js>

  • Development URL — <https://unpkg.com/@shopify/app-bridge@1.6/umd/index.development.js>

Set up Redux DevTools

  1. Follow the instructions to install Redux DevTools in your browser. The following examples are based on using Google Chrome, but similar steps apply for Firefox.
  2. Open your app in a development store.
  3. Open the Redux DevTools.

Using Redux DevTools

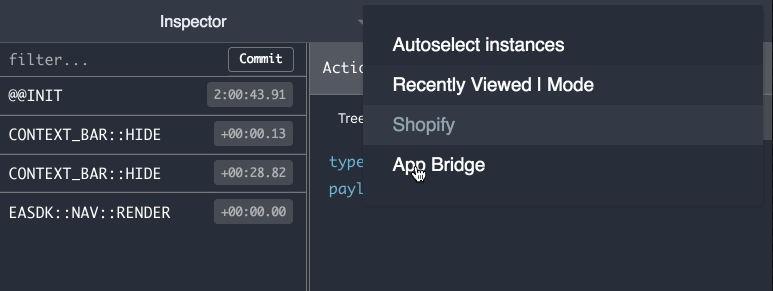

From the Inspector tab in Redux DevTools, select the App Bridge instance. You should see a list of all dispatched App Bridge actions on the left-hand side.

Click on an action in the list to get more information about that action.

Action

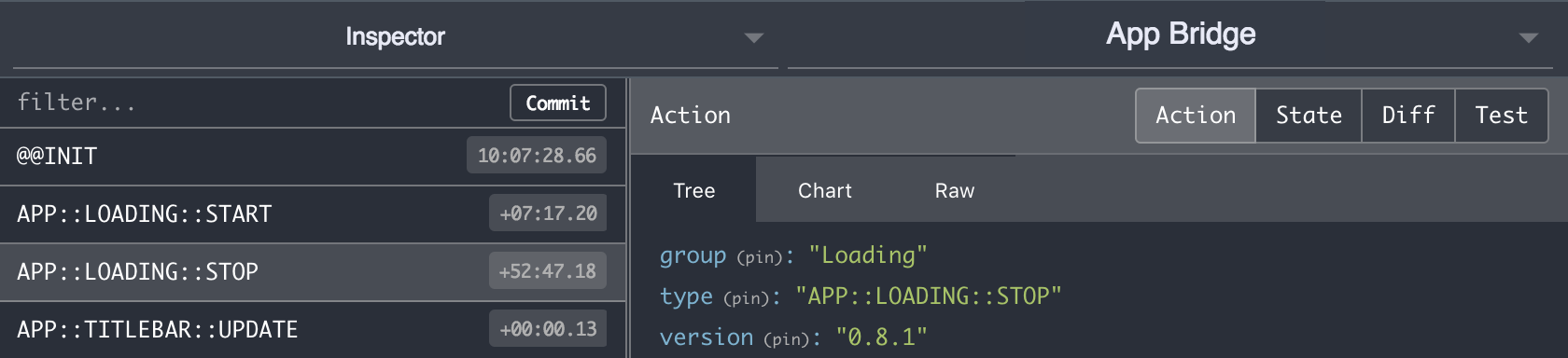

After you select an action, click the Action tab to get more information about the action's payload.

State

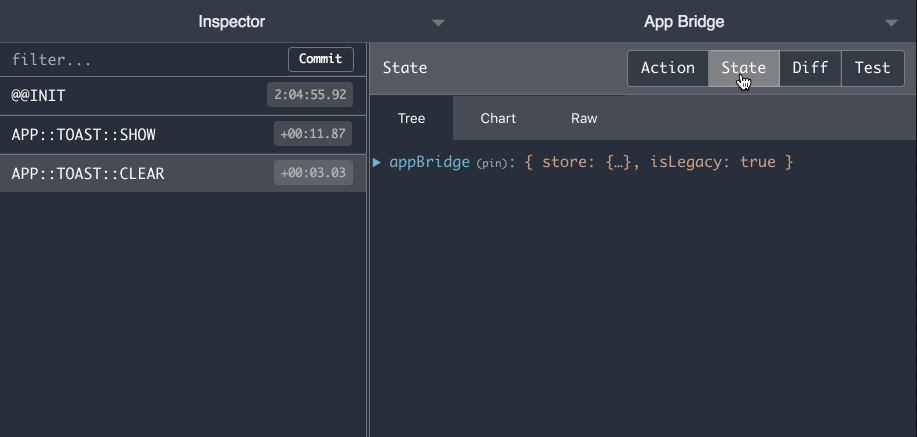

After you select an action, click the State tab to see the state of the Shopify App Bridge data store after the action was dispatched. Your app state is contained in the appBridge.store property. You can click (pin) next to appBridge.store to bookmark this property so you can quickly review the state. The information shown here is identical to what you get when calling app.getState locally on your app.

Diff

After you select an action, click the Diff tab to see the difference between your app state after the action was dispatched. In the following example, a LOADING::CLEAR action was dispatched to set the loading state to false:

Replaying actions

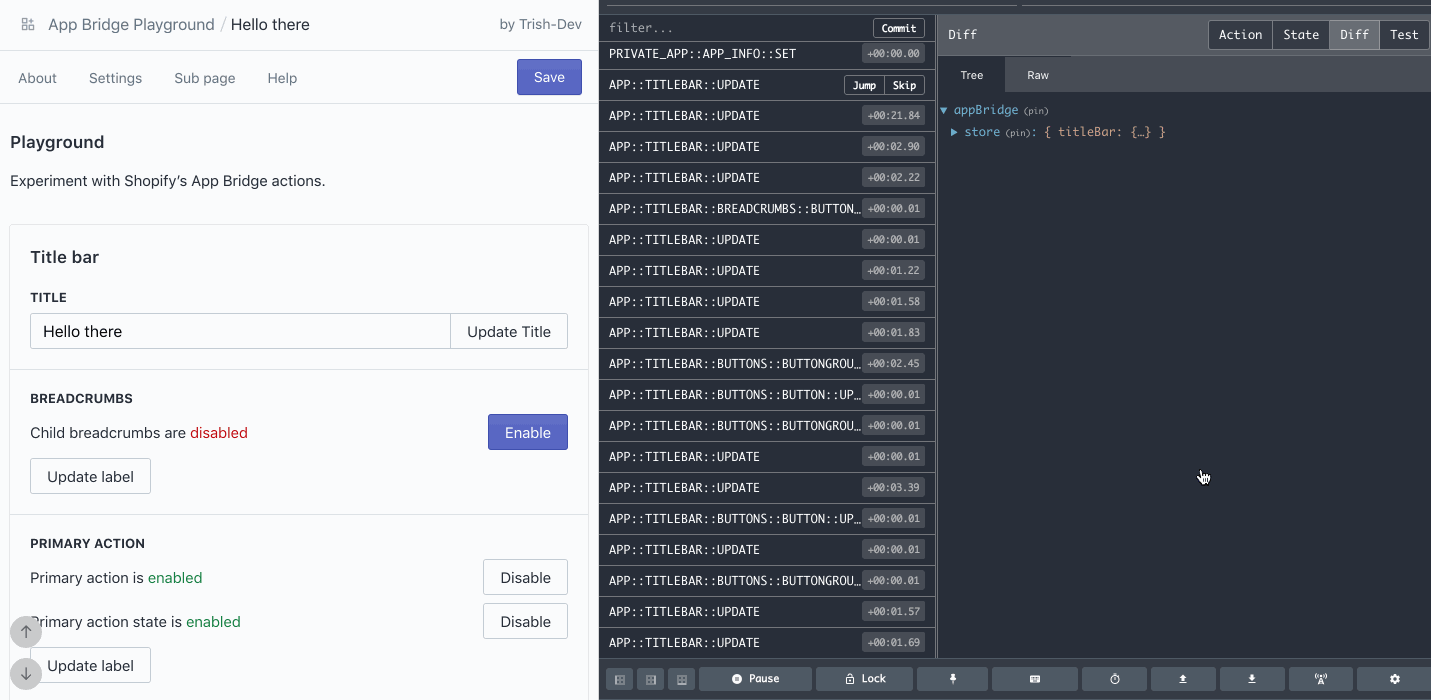

In Redux DevTools, click the clock icon to open the playback controller. This lets you step backward and forward through actions, and replay them in sequence.

Dispatching actions

Redux DevTools allows you to manually dispatch actions directly on the store.

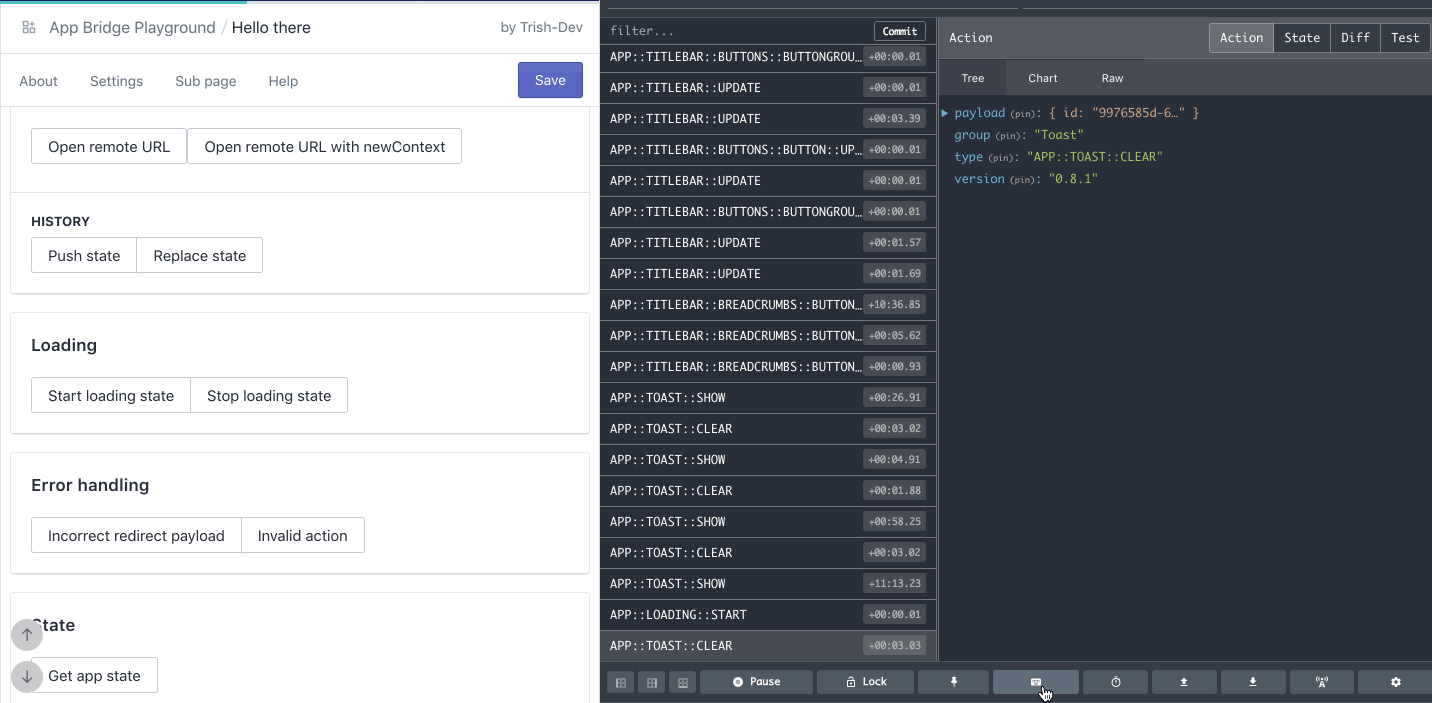

Click the keyboard icon to open the dispatcher. This lets you quickly debug without using any code. Each action must contain the following properties: type, group, and version. The payload property is optional, depending on the action being dispatched.

Shopify App Bridge automatically fills out the required values for you when dispatching actions through an app. When using the DevTools to dispatch, you must supply the required values yourself.

Here is an example of a show Toast action:

{
  group: 'Toast',
  payload: {
    duration: 3000,
    message: 'Hello world!'
  },
  type: 'APP::TOAST::SHOW',
  version: '0.8.1',
}

You can paste the above directly inside the dispatcher and press Dispatch to submit the action:
