Getting started with delivery profiles

Also in this section

• Migration guide

Note

This feature is currently being rolled out to merchants and is not yet available on all shops. To learn how to check whether this feature has been activated on a specific shop, see our migration guide FAQ. To test this feature, create a development store and enable the Unite 2019 developer preview.

You can use delivery profiles to manage advanced shipping information in Shopify. Shops that use delivery profiles gain the ability to create shipping rates per product variant and location.

Delivery profiles

Delivery profiles store the information about what delivery methods and rates apply to specific products:

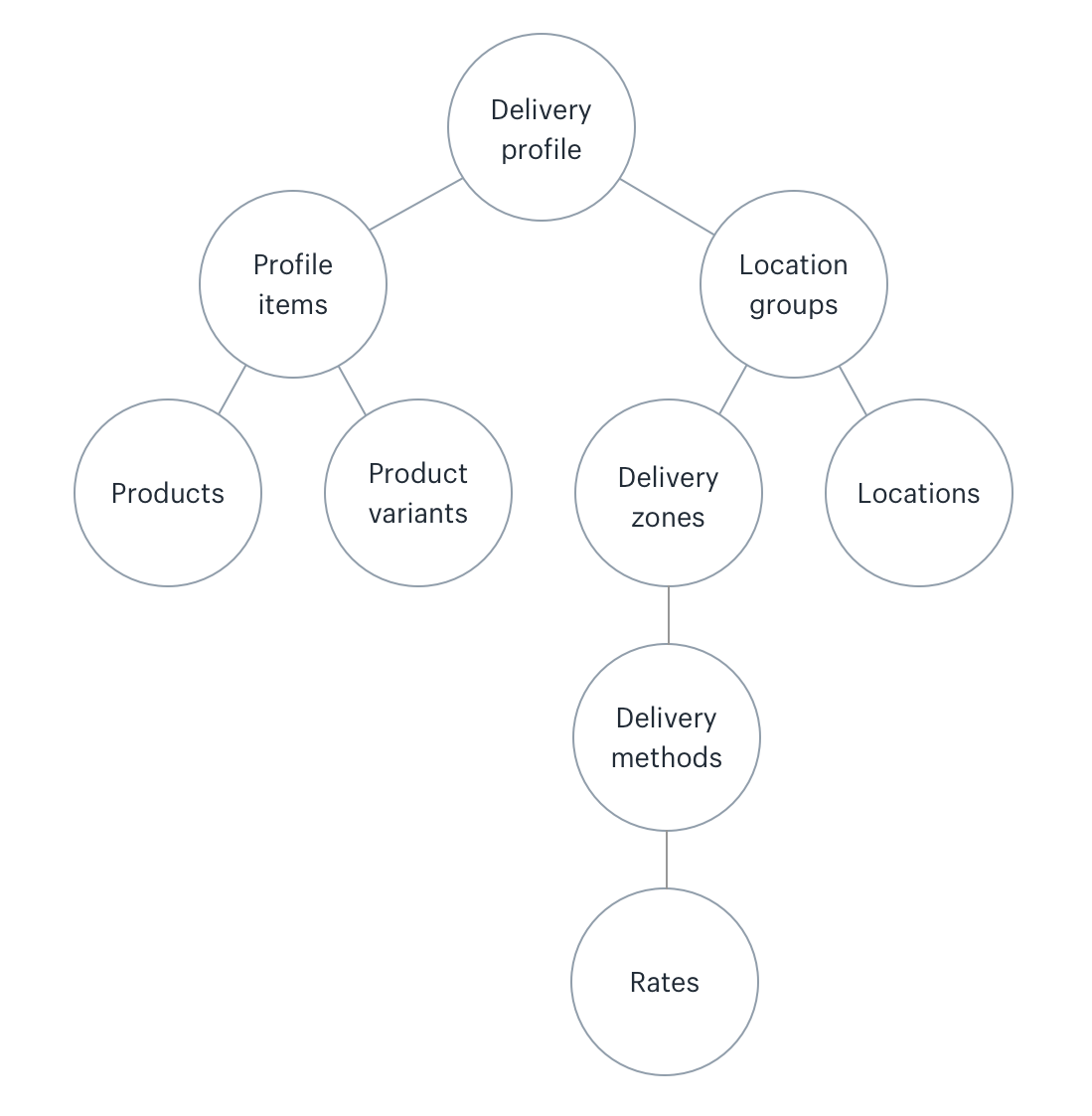

Products that require shipping are associated to location groups, delivery zones, and delivery methods within a delivery profile:

Delivery profile	Represents a set of shipping settings for a set of product variants. For example, you might have a delivery profile for heavy variants and another for fragile variants.
Location group	Represents a set of locations that ship the product variants to the same delivery zones. For example, you might have a location group for the Americas that ships to Canada and Germany, and another location group for Europe that also ships to Canada and Germany.
Delivery zone	Represents a group of countries where the variants in the delivery profile are shipped to. For example, you might ship products to Canada.
Delivery methods	Delivery methods specify the static rates or carrier-calculated rates (participant) for the delivery zones. For static rates, you can set conditional rates that take effect only if certain conditions are met. For example, you can specify a condition that applies free shipping when a cart's total is greater than or equal to $100. Shipping rates are surfaced at checkout to the customer.

Query walkthrough

The following query walkthrough demonstrates the different parts of a delivery profile.

Delivery profiles

The following query returns a delivery profile with its ID, name and default setting. Product variants stay in the default profile until they are added to another delivery profile. The example response indicates that the default profile is returned.

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles (first: 1) {
    edges {
      node {
        id
        name
        default
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "id": "gid://shopify/DeliveryProfile/4227128",
            "name": "Default",
            "default": true
          }
        }
      ]
    }
  },
  ...
}

Profile items

Product variants are associated to delivery profiles using the profileItems object. Each profile item can include an array of objects where each object includes a product and a list of associated variants.

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles (first: 1) {
    edges {
      node {
        profileItems (first: 2) {
          edges {
            node {
              product {
                id
                handle
              }
              variants (first: 2) {
                edges {
                  node {
                    id
                    title
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileItems": {
              "edges": [
                {
                  "node": {
                    "product": {
                      "id": "gid://shopify/Product/8092548998",
                      "handle": "ajtestproduct"
                    },
                    "variants": {
                      "edges": [
                        {
                          "node": {
                            "id": "gid://shopify/ProductVariant/26669237382",
                            "title": "1"
                          }
                        },
                        {
                          "node": {
                            "id": "gid://shopify/ProductVariant/27700365318",
                            "title": "2"
                          }
                        }
                      ]
                    }
                  }
                },
                {
                  "node": {
                    "product": {
                      "id": "gid://shopify/Product/8104668422",
                      "handle": "burton-custom-freestlye-151"
                    },
                    "variants": {
                      "edges": [
                        {
                          "node": {
                            "id": "gid://shopify/ProductVariant/26756068422",
                            "title": "First"
                          }
                        },
                        {
                          "node": {
                            "id": "gid://shopify/ProductVariant/26756068550",
                            "title": "Second"
                          }
                        }
                      ]
                    }
                  }
                }
              ]
            }
          }
        }
      ]
    }
  },
  ...
}

Profile location groups

Profile location groups represent groupings of origin locations that have common shipping properties within a delivery profile.

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles (first: 1) {
    edges {
      node {
        profileLocationGroups {
          locationGroup {
            id
            locations (first: 3) {
              edges {
                node {
                  id
                  name
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileLocationGroups": [
              {
                "locationGroup": {
                  "id": "gid://shopify/DeliveryLocationGroup/3014712",
                  "locations": {
                    "edges": [
                      {
                        "node": {
                          "id": "gid://shopify/Location/45141830",
                          "name": "99 chemin mahon"
                        }
                      },
                      {
                        "node": {
                          "id": "gid://shopify/Location/9562054",
                          "name": "mahon"
                        }
                      }
                    ]
                  }
                }
              },
              {
                "locationGroup": {
                  "id": "gid://shopify/DeliveryLocationGroup/6946872",
                  "locations": {
                    "edges": [
                      {
                        "node": {
                          "id": "gid://shopify/Location/17225842744",
                          "name": "downtown location"
                        }
                      }
                    ]
                  }
                }
              }
            ]
          }
        }
      ]
    }
  },
  ...
}

Location group zones

The locationGroupZones object represents one or more delivery zones where products can ship to. Each profile location group can have multiple location group zones.

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles (first: 1) {
    edges {
      node {
        profileLocationGroups {
          locationGroupZones (first: 2) {
            edges {
              node {
                zone {
                  id
                  name
                  countries {
                    name
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileLocationGroups": [
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "zone": {
                          "id": "gid://shopify/DeliveryZone/9961528",
                          "name": "Domestic",
                          "countries": [
                            {
                              "name": "Canada"
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "zone": {
                          "id": "gid://shopify/DeliveryZone/10027064",
                          "name": "Europe",
                          "countries": [
                            {
                              "name": "United Kingdom"
                            }
                          ]
                        }
                      }
                    }
                  ]
                }
              },
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "zone": {
                          "id": "gid://shopify/DeliveryZone/15368248",
                          "name": "germany",
                          "countries": [
                            {
                              "name": "Germany"
                            }
                          ]
                        }
                      }
                    }
                  ]
                }
              }
            ]
          }
        }
      ]
    }
  },
  ...
}

Method definitions

Method definitions represent delivery methods within the context of a delivery profile, location group, and zone. Each method definition includes a name property, representing the name of the delivery method that is displayed to the customer at checkout.

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles (first: 1) {
    edges {
      node {
        profileLocationGroups {
          locationGroupZones (first: 3) {
            edges {
              node {
                methodDefinitions (first:3) {
                  edges {
                    node {
                      id
                      name
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileLocationGroups": [
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "id": "gid://shopify/DeliveryMethodDefinition/24739896",
                                "name": "Standard Shipping"
                              }
                            },
                            {
                              "node": {
                                "id": "gid://shopify/DeliveryMethodDefinition/24772664",
                                "name": "Heavy Goods Shipping"
                              }
                            },
                            {
                              "node": {
                                "id": "gid://shopify/DeliveryMethodDefinition/24805432",
                                "name": "carrier service app"
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "id": "gid://shopify/DeliveryMethodDefinition/24641592",
                                "name": "price based"
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "id": "gid://shopify/DeliveryMethodDefinition/24674360",
                                "name": "International Shipping"
                              }
                            },
                            {
                              "node": {
                                "id": "gid://shopify/DeliveryMethodDefinition/24707128",
                                "name": "carrier service app"
                              }
                            }
                          ]
                        }
                      }
                    }
                  ]
                }
              },
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": []
                        }
                      }
                    }
                  ]
                }
              }
            ]
          }
        }
      ]
    }
  },
  ...
}

Method conditions

Method conditions can be used to make rates available at checkout when certain conditions apply. For example, you can set a price-based condition that displays the rate only when a cart's total passes a price threshold. Method conditions can be applied only to statically defined rates.

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles (first: 1) {
    edges {
      node {
        profileLocationGroups {
          locationGroupZones (first: 2) {
            edges {
              node {
                methodDefinitions (first:2) {
                  edges {
                    node {
                      methodConditions {
                        id
                        operator
                        conditionCriteria {
                          ... on Weight {
                            value
                          }
                          ... on MoneyV2 {
                            amount
                            currencyCode
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileLocationGroups": [
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "methodConditions": [
                                  {
                                    "id": "gid://shopify/DeliveryCondition/19595320",
                                    "operator": "GREATER_THAN_OR_EQUAL_TO",
                                    "conditionCriteria": {
                                      "value": 0
                                    }
                                  },
                                  {
                                    "id": "gid://shopify/DeliveryCondition/19628088",
                                    "operator": "LESS_THAN_OR_EQUAL_TO",
                                    "conditionCriteria": {
                                      "value": 5
                                    }
                                  }
                                ]
                              }
                            },
                            {
                              "node": {
                                "methodConditions": [
                                  {
                                    "id": "gid://shopify/DeliveryCondition/19660856",
                                    "operator": "GREATER_THAN_OR_EQUAL_TO",
                                    "conditionCriteria": {
                                      "value": 5
                                    }
                                  },
                                  {
                                    "id": "gid://shopify/DeliveryCondition/19693624",
                                    "operator": "LESS_THAN_OR_EQUAL_TO",
                                    "conditionCriteria": {
                                      "value": 20
                                    }
                                  }
                                ]
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "methodConditions": [
                                  {
                                    "id": "gid://shopify/DeliveryCondition/19464248",
                                    "operator": "GREATER_THAN_OR_EQUAL_TO",
                                    "conditionCriteria": {
                                      "amount": "0.0",
                                      "currencyCode": "USD"
                                    }
                                  },
                                  {
                                    "id": "gid://shopify/DeliveryCondition/19497016",
                                    "operator": "LESS_THAN_OR_EQUAL_TO",
                                    "conditionCriteria": {
                                      "amount": "100.0",
                                      "currencyCode": "USD"
                                    }
                                  }
                                ]
                              }
                            }
                          ]
                        }
                      }
                    }
                  ]
                }
              },
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": []
                        }
                      }
                    }
                  ]
                }
              }
            ]
          }
        }
      ]
    }
  },
  ...
}

Rate provider

The rates that are displayed at checkout are found in the rateProvider object. Shopify supports two types of rates:

• DeliveryRateDefinition: Static rates, stored within Shopify.
• DeliveryParticipant: Dynamic rates, retrieved with the CarrierService API.

The following example returns both static and dynamic rates:

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles(first: 1) {
    edges {
      node {
        profileLocationGroups {
          locationGroupZones(first: 3) {
            edges {
              node {
                methodDefinitions(first: 3) {
                  edges {
                    node {
                      rateProvider {
                        ... on DeliveryRateDefinition {
                          id
                          price {
                            amount
                          }
                        }
                        ... on DeliveryParticipant {
                          id
                          fixedFee {
                            amount
                            currencyCode
                          }
                          percentageOfRateFee
                          participantServices {
                            active
                            name
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileLocationGroups": [
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13172792",
                                  "price": {
                                    "amount": "8.0"
                                  }
                                }
                              }
                            },
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13205560",
                                  "price": {
                                    "amount": "18.0"
                                  }
                                }
                              }
                            },
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryParticipant/11567160",
                                  "fixedFee": {
                                    "amount": "0.0",
                                    "currencyCode": "USD"
                                  },
                                  "percentageOfRateFee": 0,
                                  "participantServices": []
                                }
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13107256",
                                  "price": {
                                    "amount": "5.0"
                                  }
                                }
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13140024",
                                  "price": {
                                    "amount": "18.0"
                                  }
                                }
                              }
                            },
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryParticipant/11534392",
                                  "fixedFee": {
                                    "amount": "0.0",
                                    "currencyCode": "USD"
                                  },
                                  "percentageOfRateFee": 0,
                                  "participantServices": []
                                }
                              }
                            }
                          ]
                        }
                      }
                    }
                  ]
                }
              },
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": []
                        }
                      }
                    }
                  ]
                }
              }
            ]
          }
        }
      ]
    }
  },
  ...
}

Create a delivery profile

To create a delivery profile, use the deliveryProfileCreate mutation, which accepts a profile argument as input.

The following mutation creates a delivery profile for products that ship from a single location to a new delivery zone for Canada.

The following list explains the important fields of the input object:

• locationGroupsToCreate - Defines the locations that will be grouped together for the included zones.
• zonesToCreate - Defines the countries for the zone and the delivery method.
• methodDefinitionsToCreate - Specifies a static rate using rateDefinition or a carrier-provided rate using participant.

POST /admin/api/unstable/graphql.json

mutation {
  deliveryProfileCreate (
    profile: {
      name: "My Fulfillment Service's Profile",
      variantsToAssociate: [
        "gid://shopify/ProductVariant/13672596209720",
      ],
      locationGroupsToCreate: {
        locations: [
          # your location id
          "gid://shopify/Location/17225842744"
        ],
        zonesToCreate: [
          {
            name: "Canada",
            countries: [
              {
                code: CA
              }
            ],
            methodDefinitionsToCreate: [
              {
                name: "my_carrier_service_name"
                active: true,
                participant: {
                  # your carrier service id
                  carrierServiceId: "gid://shopify/DeliveryCarrierService/11499270"
                }
              }
            ]
          }
        ]
        }
    }
  )
  {
    profile {
      id
      name
      profileLocationGroups {
        locationGroup {
          id
          locations (first: 1, includeLegacy:true) {
            edges {
              node {
                id
                name
              }
            }
          }
        }
        locationGroupZones (first: 1) {
          edges {
            node {
              zone {
                name
                countries {
                  name
                }
              }
              methodDefinitions (first: 1) {
                edges {
                  node {
                    id
                    name
                    active
                    rateProvider {
                      ... on DeliveryParticipant {
                        id
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
    userErrors {
      field
      message
    }
  }
}

View response

JSON response:

{
  "data": {
    "deliveryProfileCreate": {
      "profile": {
        "id": "gid://shopify/DeliveryProfile/7372856",
        "name": "My Fulfillment Service's Profile",
        "profileLocationGroups": [
          {
            "locationGroup": {
              "id": "gid://shopify/DeliveryLocationGroup/6094904",
              "locations": {
                "edges": [
                  {
                    "node": {
                      "id": "gid://shopify/Location/45141830",
                      "name": "150 Elgin"
                    }
                  }
                ]
              }
            },
            "locationGroupZones": {
              "edges": [
                {
                  "node": {
                    "zone": {
                      "name": "Canada",
                      "countries": [
                        {
                          "name": "Canada"
                        }
                      ]
                    },
                    "methodDefinitions": {
                      "edges": [
                        {
                          "node": {
                            "id": "gid://shopify/DeliveryMethodDefinition/35684408",
                            "name": "my_carrier_service_name",
                            "active": true,
                            "rateProvider": {
                              "id": "gid://shopify/DeliveryParticipant/13664312"
                            }
                          }
                        }
                      ]
                    }
                  }
                }
              ]
            }
          }
        ]
      },
      "userErrors": []
    }
  },
  ...
}

List of Country and Province codes

This table contains the ISO codes for all countries and their subdivisions, for use with the countries field of zonesToCreate.

View table

Country Name	ISO code
Afghanistan	AF
Aland Islands	AX
Albania	AL
Algeria	DZ
Andorra	AD
Angola	AO
Anguilla	AI
Antigua And Barbuda	AG
Argentina Provinces Name ISO code Buenos Aires B Catamarca K Chaco H Chubut U Ciudad Autónoma de Buenos Aires C Córdoba X Corrientes W Entre Ríos E Formosa P Jujuy Y La Pampa L La Rioja F Mendoza M Misiones N Neuquén Q Río Negro R Salta A San Juan J San Luis D Santa Cruz Z Santa Fe S Santiago Del Estero G Tierra Del Fuego V Tucumán T	AR
Armenia	AM
Aruba	AW
Australia States and territories Name ISO code Australian Capital Territory ACT New South Wales NSW Northern Territory NT Queensland QLD South Australia SA Tasmania TAS Victoria VIC Western Australia WA	AU
Austria	AT
Azerbaijan	AZ
Bahamas	BS
Bahrain	BH
Bangladesh	BD
Barbados	BB
Belarus	BY
Belgium	BE
Belize	BZ
Benin	BJ
Bermuda	BM
Bhutan	BT
Bolivia	BO
Bonaire, Sint Eustatius and Saba	BQ
Bosnia And Herzegovina	BA
Botswana	BW
Bouvet Island	BV
Brazil States Name ISO code Acre AC Alagoas AL Amapá AP Amazonas AM Bahia BA Ceará CE Distrito Federal DF Espírito Santo ES Goiás GO Maranhão MA Mato Grosso MT Mato Grosso do Sul MS Minas Gerais MG Pará PA Paraíba PB Paraná PR Pernambuco PE Piauí PI Rio Grande do Norte RN Rio Grande do Sul RS Rio de Janeiro RJ Rondônia RO Roraima RR Santa Catarina SC São Paulo SP Sergipe SE Tocantins TO	BR
British Indian Ocean Territory	IO
Brunei	BN
Bulgaria	BG
Burkina Faso	BF
Burundi	BI
Cambodia	KH
Canada Provinces and territories Name ISO code Alberta AB British Columbia BC Manitoba MB New Brunswick NB Newfoundland NL Northwest Territories NT Nova Scotia NS Nunavut NU Ontario ON Prince Edward Island PE Quebec QC Saskatchewan SK Yukon YT	CA
Cape Verde	CV
Cayman Islands	KY
Central African Republic	CF
Chad	TD
Chile Regions Name ISO code Antofagasta AN Araucanía AR Arica and Parinacota AP Atacama AT Aysén AI Biobío BI Coquimbo CO Los Lagos LL Los Ríos LR Magallanes MA Maule ML Ñuble NB O'Higgins LI Santiago RM Tarapacá TA Valparaíso VS	CL
China Provinces Name ISO code Anhui AH Beijing BJ Chongqing CQ Fujian FJ Gansu GS Guangdong GD Guangxi GX Guizhou GZ Hainan HI Hebei HE Heilongjiang HL Henan HA Hubei HB Hunan HN Inner Mongolia NM Jiangsu JS Jiangxi JX Jilin JL Liaoning LN Ningxia NX Qinghai QH Shaanxi SN Shandong SD Shanghai SH Shanxi SX Sichuan SC Tianjin TJ Xinjiang XJ Xizang YZ Yunnan YN Zhejiang ZJ	CN
Christmas Island	CX
Cocos (Keeling) Islands	CC
Colombia Departments Name ISO code Amazonas AMA Antioquia ANT Arauca ARA Atlántico ATL Bogotá, D.C. DC Bolívar BOL Boyacá BOY Caldas CAL Caquetá CAQ Casanare CAS Cauca CAU Cesar CES Chocó CHO Córdoba COR Cundinamarca CUN Guainía GUA Guaviare GUV Huila HUI La Guajira LAG Magdalena MAG Meta MET Nariño NAR Norte de Santander NSA Putumayo PUT Quindío QUI Risaralda RIS San Andrés, Providencia y Santa Catalina SAP Santander SAN Sucre SUC Tolima TOL Valle del Cauca VAC Vaupés VAU Vichada VID	CO
Comoros	KM
Congo	CG
Congo, The Democratic Republic Of The	CD
Cook Islands	CK
Costa Rica	CR
Croatia	HR
Cuba	CU
Curaçao	CW
Cyprus	CY
Czech Republic	CZ
Côte dIvoireIvoire	CI
Denmark	DK
Djibouti	DJ
Dominica	DM
Dominican Republic	DO
Ecuador	EC
Egypt Governorates Name ISO code 6th of October SU Al Sharqia SHR Alexandria ALX Aswan ASN Asyut AST Beheira BH Beni Suef BNS Cairo C Dakahlia DK Damietta DT Faiyum FYM Gharbia GH Giza GZ Helwan HU Ismailia IS Kafr el-Sheikh KFS Luxor LX Matrouh MT Minya MN Monufia MNF New Valley WAD North Sinai SIN Port Said PTS Qalyubia KB Qena KN Red Sea BA Sohag SHG South Sinai JS Suez SUZ	EG
El Salvador	SV
Equatorial Guinea	GQ
Eritrea	ER
Estonia	EE
Ethiopia	ET
Falkland Islands (Malvinas)	FK
Faroe Islands	FO
Fiji	FJ
Finland	FI
France	FR
French Guiana	GF
French Polynesia	PF
French Southern Territories	TF
Gabon	GA
Gambia	GM
Georgia	GE
Germany	DE
Ghana	GH
Gibraltar	GI
Greece	GR
Greenland	GL
Grenada	GD
Guadeloupe	GP
Guatemala Departments Name ISO code Alta Verapaz AVE Baja Verapaz BVE Chimaltenango CMT Chiquimula CQM El Progreso EPR Escuintla ESC Guatemala GUA Huehuetenango HUE Izabal IZA Jalapa JAL Jutiapa JUT Petén PET Quetzaltenango QUE Quiché QUI Retalhuleu RET Sacatepéquez SAC San Marcos SMA Santa Rosa SRO Sololá SOL Suchitepéquez SUC Totonicapán TOT Zacapa ZAC	GT
Guernsey	GG
Guinea	GN
Guinea Bissau	GW
Guyana	GY
Haiti	HT
Heard Island And Mcdonald Islands	HM
Holy See (Vatican City State)	VA
Honduras	HN
Hong Kong Provinces Name ISO code Hong Kong Island HK Kowloon KL New Territories NT	HK
Hungary	HU
Iceland	IS
India States and territories Name ISO code Andaman and Nicobar AN Andhra Pradesh AP Arunachal Pradesh AR Assam AS Bihar BR Chandigarh CH Chattisgarh CG Dadra and Nagar Haveli DN Daman and Diu DD Delhi DL Goa GA Gujarat GJ Haryana HR Himachal Pradesh HP Jammu and Kashmir JK Jharkhand JH Karnataka KA Kerala KL Lakshadweep LD Madhya Pradesh MP Maharashtra MH Manipur MN Meghalaya ML Mizoram MZ Nagaland NL Orissa OR Puducherry PY Punjab PB Rajasthan RJ Sikkim SK Tamil Nadu TN Telangana TS Tripura TR Uttar Pradesh UP Uttarakhand UK West Bengal WB	IN
Indonesia Provinces Name ISO code Aceh AC Bali BA Bangka Belitung BB Banten BT Bengkulu BE Gorontalo GO Jakarta JK Jambi JA Jawa Barat JB Jawa Tengah JT Jawa Timur JI Kalimantan Barat KB Kalimantan Selatan KS Kalimantan Tengah KT Kalimantan Timur KI Kalimantan Utara KU Kepulauan Riau KR Lampung LA Maluku MA Maluku Utara MU Nusa Tenggara Barat NB Nusa Tenggara Timur NT Papua PA Papua Barat PB Riau RI Sulawesi Barat SR Sulawesi Selatan SN Sulawesi Tengah ST Sulawesi Tenggara SG Sulawesi Utara SA Sumatra Barat SB Sumatra Selatan SS Sumatra Utara SU Yogyakarta YO	ID
Iran, Islamic Republic Of	IR
Iraq	IQ
Ireland Counties Name ISO code Carlow CW Cavan CN Clare CE Cork CO Donegal DL Dublin D Galway G Kerry KY Kildare KE Kilkenny KK Laois LS Leitrim LM Limerick LK Longford LD Louth LH Mayo MO Meath MH Monaghan MN Offaly OY Roscommon RN Sligo SO Tipperary TA Waterford WD Westmeath WH Wexford WX Wicklow WW	IE
Isle Of Man	IM
Israel	IL
Italy Provinces Name ISO code Agrigento AG Alessandria AL Ancona AN Aosta AO Arezzo AR Ascoli Piceno AP Asti AT Avellino AV Bari BA Barletta-Andria-Trani BT Belluno BL Benevento BN Bergamo BG Biella BI Bologna BO Bolzano BZ Brescia BS Brindisi BR Cagliari CA Caltanissetta CL Campobasso CB Carbonia-Iglesias CI Caserta CE Catania CT Catanzaro CZ Chieti CH Como CO Cosenza CS Cremona CR Crotone KR Cuneo CN Enna EN Fermo FM Ferrara FE Firenze FI Foggia FG Forlì-Cesena FC Frosinone FR Genova GE Gorizia GO Grosseto GR Imperia IM Isernia IS LAquilaAquila AQ La Spezia SP Latina LT Lecce LE Lecco LC Livorno LI Lodi LO Lucca LU Macerata MC Mantova MN Massa-Carrara MS Matera MT Medio Campidano VS Messina ME Milano MI Modena MO Monza e Brianza MB Napoli NA Novara NO Nuoro NU Ogliastra OG Olbia-Tempio OT Oristano OR Padova PD Palermo PA Parma PR Pavia PV Perugia PG Pesaro e Urbino PU Pescara PE Piacenza PC Pisa PI Pistoia PT Pordenone PN Potenza PZ Prato PO Ragusa RG Ravenna RA Reggio Calabria RC Reggio Emilia RE Rieti RI Rimini RN Roma RM Rovigo RO Salerno SA Sassari SS Savona SV Siena SI Siracusa SR Sondrio SO Taranto TA Teramo TE Terni TR Torino TO Trapani TP Trento TN Treviso TV Trieste TS Udine UD Varese VA Venezia VE Verbano-Cusio-Ossola VB Vercelli VC Verona VR Vibo Valentia VV Vicenza VI Viterbo VT	IT
Jamaica	JM
Japan Prefectures Name ISO code Hokkaidō JP-01 Aomori JP-02 Iwate JP-03 Miyagi JP-04 Akita JP-05 Yamagata JP-06 Fukushima JP-07 Ibaraki JP-08 Tochigi JP-09 Gunma JP-10 Saitama JP-11 Chiba JP-12 Tōkyō JP-13 Kanagawa JP-14 Niigata JP-15 Toyama JP-16 Ishikawa JP-17 Fukui JP-18 Yamanashi JP-19 Nagano JP-20 Gifu JP-21 Shizuoka JP-22 Aichi JP-23 Mie JP-24 Shiga JP-25 Kyōto JP-26 Ōsaka JP-27 Hyōgo JP-28 Nara JP-29 Wakayama JP-30 Tottori JP-31 Shimane JP-32 Okayama JP-33 Hiroshima JP-34 Yamaguchi JP-35 Tokushima JP-36 Kagawa JP-37 Ehime JP-38 Kōchi JP-39 Fukuoka JP-40 Saga JP-41 Nagasaki JP-42 Kumamoto JP-43 Ōita JP-44 Miyazaki JP-45 Kagoshima JP-46 Okinawa JP-47	JP
Jersey	JE
Jordan	JO
Kazakhstan	KZ
Kenya	KE
Kiribati	KI
Korea, Democratic Peoples Republic Ofs Republic Of	KP
Kosovo	XK
Kuwait	KW
Kyrgyzstan	KG
Lao Peoples Democratic Republics Democratic Republic	LA
Latvia	LV
Lebanon	LB
Lesotho	LS
Liberia	LR
Libyan Arab Jamahiriya	LY
Liechtenstein	LI
Lithuania	LT
Luxembourg	LU
Macao	MO
Macedonia, Republic Of	MK
Madagascar	MG
Malawi	MW
Malaysia States and territories Name ISO code Johor JHR Kedah KDH Kelantan KTN Kuala Lumpur KUL Labuan LBN Melaka MLK Negeri Sembilan NSN Pahang PHG Perak PRK Perlis PLS Pulau Pinang PNG Putrajaya PJY Sabah SBH Sarawak SWK Selangor SGR Terengganu TRG	MY
Maldives	MV
Mali	ML
Malta	MT
Martinique	MQ
Mauritania	MR
Mauritius	MU
Mayotte	YT
Mexico States Name ISO code Aguascalientes AGS Baja California BC Baja California Sur BCS Campeche CAMP Chiapas CHIS Chihuahua CHIH Ciudad de México DF Coahuila COAH Colima COL Durango DGO Guanajuato GTO Guerrero GRO Hidalgo HGO Jalisco JAL México MEX Michoacán MICH Morelos MOR Nayarit NAY Nuevo León NL Oaxaca OAX Puebla PUE Querétaro QRO Quintana Roo Q ROO San Luis Potosí SLP Sinaloa SIN Sonora SON Tabasco TAB Tamaulipas TAMPS Tlaxcala TLAX Veracruz VER Yucatán YUC Zacatecas ZAC	MX
Moldova, Republic of	MD
Monaco	MC
Mongolia	MN
Montenegro	ME
Montserrat	MS
Morocco	MA
Mozambique	MZ
Myanmar	MM
Namibia	NA
Nauru	NR
Nepal	NP
Netherlands	NL
Netherlands Antilles	AN
New Caledonia	NC
New Zealand Regions Name ISO code Auckland AUK Bay of Plenty BOP Canterbury CAN Gisborne GIS Hawkes Bays Bay HKB Manawatu-Wanganui MWT Marlborough MBH Nelson NSN Northland NTL Otago OTA Southland STL Taranaki TKI Tasman TAS Waikato WKO Wellington WGN West Coast WTC	NZ
Nicaragua	NI
Niger	NE
Nigeria Provinces Name ISO code Abia AB Abuja Federal Capital Territory FC Adamawa AD Akwa Ibom AK Anambra AN Bauchi BA Bayelsa BY Benue BE Borno BO Cross River CR Delta DE Ebonyi EB Edo ED Ekiti EK Enugu EN Gombe GO Imo IM Jigawa JI Kaduna KD Kano KN Katsina KT Kebbi KE Kogi KO Kwara KW Lagos LA Nasarawa NA Niger NI Ogun OG Ondo ON Osun OS Oyo OY Plateau PL Rivers RI Sokoto SO Taraba TA Yobe YO Zamfara ZA	NG
Niue	NU
Norfolk Island	NF
Norway	NO
Oman	OM
Pakistan	PK
Palestinian Territory, Occupied	PS
Panama Provinces Name ISO code Bocas del Toro PA-1 Chiriquí PA-4 Coclé PA-2 Colón PA-3 Darién PA-5 Emberá PA-EM Herrera PA-6 Kuna Yala PA-KY Los Santos PA-7 Ngöbe-Buglé PA-NB Panamá PA-8 Panamá Oeste PA-10 Veraguas PA-9	PA
Papua New Guinea	PG
Paraguay	PY
Peru Provinces Name ISO code Amazonas PE-AMA Áncash PE-ANC Apurímac PE-APU Arequipa PE-ARE Ayacucho PE-AYA Cajamarca PE-CAJ Callao PE-CAL Cuzco PE-CUS Huancavelica PE-HUV Huánuco PE-HUC Ica PE-ICA Junín PE-JUN La Libertad PE-LAL Lambayeque PE-LAM Lima (departamento) PE-LIM Lima (provincia) PE-LMA Loreto PE-LOR Madre de Dios PE-MDD Moquegua PE-MOQ Pasco PE-PAS Piura PE-PIU Puno PE-PUN San Martín PE-SAM Tacna PE-TAC Tumbes PE-TUM Ucayali PE-UCA	PE
Philippines	PH
Pitcairn	PN
Poland	PL
Portugal Provinces Name ISO code Açores PT-20 Aveiro PT-01 Beja PT-02 Braga PT-03 Bragança PT-04 Castelo Branco PT-05 Coimbra PT-06 Évora PT-07 Faro PT-08 Guarda PT-09 Leiria PT-10 Lisboa PT-11 Madeira PT-30 Portalegre PT-12 Porto PT-13 Santarém PT-14 Setúbal PT-15 Viana do Castelo PT-16 Vila Real PT-17 Viseu PT-18	PT
Qatar	QA
Republic of Cameroon	CM
Reunion	RE
Romania Provinces Name ISO code Alba AB Arad AR Argeș AG Bacău BC Bihor BH Bistrița-Năsăud BN Botoșani BT Brașov BV Brăila BR București B Buzău BZ Călărași CL Caraș-Severin CS Cluj CJ Constanța CT Covasna CV Dâmbovița DB Dolj DJ Galați GL Giurgiu GR Gorj GJ Harghita HR Hunedoara HD Iași IS Ialomița IL Ilfov IF Maramureș MM Mehedinți MH Mureș MS Neamț NT Olt OT Prahova PH Sălaj SJ Satu Mare SM Sibiu SB Suceava SV Teleorman TR Timiș TM Tulcea TL Vâlcea VL Vaslui VS Vrancea VN	RO
Russia Provinces Name ISO code Republic of Adygeya AD Altai Republic AL Altai Krai ALT Amur Oblast AMU Arkhangelsk Oblast ARK Astrakhan Oblast AST Republic of Bashkortostan BA Belgorod Oblast BEL Bryansk Oblast BRY Republic of Buryatia BU Chechen Republic CE Chelyabinsk Oblast CHE Chukotka Autonomous Okrug CHU Chuvash Republic CU Republic of Dagestan DA Republic of Ingushetia IN Irkutsk Oblast IRK Ivanovo Oblast IVA Jewish Autonomous Oblast YEV Kabardino-Balkarian Republic KB Kaliningrad Oblast KGD Republic of Kalmykia KL Kaluga Oblast KLU Kamchatka Krai KAM Karachay–Cherkess Republic KC Republic of Karelia KR Kemerovo Oblast KEM Khabarovsk Krai KHA Republic of Khakassia KK Khanty-Mansi Autonomous Okrug KHM Kirov Oblast KIR Komi Republic KO Kostroma Oblast KOS Krasnodar Krai KDA Krasnoyarsk Krai KYA Kurgan Oblast KGN Kursk Oblast KRS Leningrad Oblast LEN Lipetsk Oblast LIP Magadan Oblast MAG Mari El Republic ME Republic of Mordovia MO Moscow MOW Moscow Oblast MOS Murmansk Oblast MUR Nizhny Novgorod Oblast NIZ Novgorod Oblast NGR Novosibirsk Oblast NVS Omsk Oblast OMS Orenburg Oblast ORE Oryol Oblast ORL Penza Oblast PNZ Perm Krai PER Primorsky Krai PRI Pskov Oblast PSK Rostov Oblast ROS Ryazan Oblast RYA Saint Petersburg SPE Sakha Republic (Yakutia) SA Sakhalin Oblast SAK Samara Oblast SAM Saratov Oblast SAR Republic of North Ossetia–Alania SE Smolensk Oblast SMO Stavropol Krai STA Sverdlovsk Oblast SVE Tambov Oblast TAM Republic of Tatarstan TA Tomsk Oblast TOM Tula Oblast TUL Tver Oblast TVE Tyumen Oblast TYU Tyva Republic TY Udmurtia UD Ulyanovsk Oblast ULY Vladimir Oblast VLA Volgograd Oblast VGG Vologda Oblast VLG Voronezh Oblast VOR Yamalo-Nenets Autonomous Okrug YAN Yaroslavl Oblast YAR Zabaykalsky Krai ZAB	RU
Rwanda	RW
Saint Barthélemy	BL
Saint Helena	SH
Saint Kitts And Nevis	KN
Saint Lucia	LC
Saint Martin	MF
Saint Pierre And Miquelon	PM
Samoa	WS
San Marino	SM
Sao Tome And Principe	ST
Saudi Arabia	SA
Senegal	SN
Serbia	RS
Seychelles	SC
Sierra Leone	SL
Singapore	SG
Sint Maarten	SX
Slovakia	SK
Slovenia	SI
Solomon Islands	SB
Somalia	SO
South Africa Provinces Name ISO code Eastern Cape EC Free State FS Gauteng GT KwaZulu-Natal NL Limpopo LP Mpumalanga MP North West NW Northern Cape NC Western Cape WC	ZA
South Georgia And The South Sandwich Islands	GS
South Korea Provinces Name ISO code Busan KR-26 Chungbuk KR-43 Chungnam KR-44 Daegu KR-27 Daejeon KR-30 Gangwon KR-42 Gwangju KR-29 Gyeongbuk KR-47 Gyeonggi KR-41 Gyeongnam KR-48 Incheon KR-28 Jeju KR-49 Jeonbuk KR-45 Jeonnam KR-46 Sejong KR-50 Seoul KR-11 Ulsan KR-31	KR
South Sudan	SS
Spain Provinces Name ISO code A Coruña C Álava VI Albacete AB Alicante A Almería AL Asturias O Ávila AV Badajoz BA Balears PM Barcelona B Burgos BU Cáceres CC Cádiz CA Cantabria S Castellón CS Ceuta CE Ciudad Real CR Córdoba CO Cuenca CU Girona GI Granada GR Guadalajara GU Guipúzcoa SS Huelva H Huesca HU Jaén J La Rioja LO Las Palmas GC León LE Lleida L Lugo LU Madrid M Málaga MA Melilla ML Murcia MU Navarra NA Ourense OR Palencia P Pontevedra PO Salamanca SA Santa Cruz de Tenerife TF Segovia SG Sevilla SE Soria SO Tarragona T Teruel TE Toledo TO Valencia V Valladolid VA Vizcaya BI Zamora ZA Zaragoza Z	ES
Sri Lanka	LK
St. Vincent	VC
Sudan	SD
Suriname	SR
Svalbard And Jan Mayen	SJ
Swaziland	SZ
Sweden	SE
Switzerland	CH
Syria	SY
Taiwan	TW
Tajikistan	TJ
Tanzania, United Republic Of	TZ
Thailand Provinces Name ISO code Amnat Charoen TH-37 Ang Thong TH-15 Bangkok TH-10 Bueng Kan TH-38 Buriram TH-31 Chachoengsao TH-24 Chai Nat TH-18 Chaiyaphum TH-36 Chanthaburi TH-22 Chiang Mai TH-50 Chiang Rai TH-57 Chon Buri TH-20 Chumphon TH-86 Kalasin TH-46 Kamphaeng Phet TH-62 Kanchanaburi TH-71 Khon Kaen TH-40 Krabi TH-81 Lampang TH-52 Lamphun TH-51 Loei TH-42 Lopburi TH-16 Mae Hong Son TH-58 Maha Sarakham TH-44 Mukdahan TH-49 Nakhon Nayok TH-26 Nakhon Pathom TH-73 Nakhon Phanom TH-48 Nakhon Ratchasima TH-30 Nakhon Sawan TH-60 Nakhon Si Thammarat TH-80 Nan TH-55 Narathiwat TH-96 Nong Bua Lam Phu TH-39 Nong Khai TH-43 Nonthaburi TH-12 Pathum Thani TH-13 Pattani TH-94 Pattaya TH-S Phangnga TH-82 Phatthalung TH-93 Phayao TH-56 Phetchabun TH-67 Phetchaburi TH-76 Phichit TH-66 Phitsanulok TH-65 Phra Nakhon Si Ayutthaya TH-14 Phrae TH-54 Phuket TH-83 Prachin Buri TH-25 Prachuap Khiri Khan TH-77 Ranong TH-85 Ratchaburi TH-70 Rayong TH-21 Roi Et TH-45 Sa Kaeo TH-27 Sakon Nakhon TH-47 Samut Prakan TH-11 Samut Sakhon TH-74 Samut Songkhram TH-75 Saraburi TH-19 Satun TH-91 Sing Buri TH-17 Sisaket TH-33 Songkhla TH-90 Sukhothai TH-64 Suphan Buri TH-72 Surat Thani TH-84 Surin TH-32 Tak TH-63 Trang TH-92 Trat TH-23 Ubon Ratchathani TH-34 Udon Thani TH-41 Uthai Thani TH-61 Uttaradit TH-53 Yala TH-95 Yasothon TH-35	TH
Timor Leste	TL
Togo	TG
Tokelau	TK
Tonga	TO
Trinidad and Tobago	TT
Tunisia	TN
Turkey	TR
Turkmenistan	TM
Turks and Caicos Islands	TC
Tuvalu	TV
Uganda	UG
Ukraine	UA
United Arab Emirates Provinces Name ISO code Abu Dhabi AZ Ajman AJ Dubai DU Fujairah FU Ras al-Khaimah RK Sharjah SH Umm al-Quwain UQ	AE
United Kingdom	GB
United States of America States Name ISO code Alabama AL Alaska AK American Samoa AS Arizona AZ Arkansas AR California CA Colorado CO Connecticut CT Delaware DE District of Columbia DC Federated States of Micronesia FM Florida FL Georgia GA Guam GU Hawaii HI Idaho ID Illinois IL Indiana IN Iowa IA Kansas KS Kentucky KY Louisiana LA Maine ME Marshall Islands MH Maryland MD Massachusetts MA Michigan MI Minnesota MN Mississippi MS Missouri MO Montana MT Nebraska NE Nevada NV New Hampshire NH New Jersey NJ New Mexico NM New York NY North Carolina NC North Dakota ND Northern Mariana Islands MP Ohio OH Oklahoma OK Oregon OR Palau PW Pennsylvania PA Puerto Rico PR Rhode Island RI South Carolina SC South Dakota SD Tennessee TN Texas TX Utah UT Vermont VT Virginia VA Washington WA West Virginia WV Wisconsin WI Wyoming WY Virgin Islands VI Armed Forces Americas AA Armed Forces Europe AE Armed Forces Pacific AP	US
United States Minor Outlying Islands	UM
Uruguay	UY
Uzbekistan	UZ
Vanuatu	VU
Venezuela	VE
Vietnam	VN
Virgin Islands, British	VG
Wallis And Futuna	WF
Western Sahara	EH
Yemen	YE
Zambia	ZM
Zimbabwe	ZW

Create a conditional rate

The following deliveryProfileCreate mutation specifies a static rate for the delivery profile that is conditional on price. The rate is shown at checkout for orders that are greater than or equal to $100. The profile input object for the mutation includes the methodDefinitionsToCreate array that indicates the rateDefinition and conditional criteria:

POST /admin/api/unstable/graphql.json

mutation {
  deliveryProfileCreate (
    profile: {
      name: "A condition profile",
      variantsToAssociate: [
        "gid://shopify/ProductVariant/13672596242488"
      ],
      locationGroupsToCreate: {
        locations: [
          "gid://shopify/Location/9562054"
        ],
        zonesToCreate: [
          {
            name: "United States",
            countries: [
              {
                code: US
              }
            ],
            methodDefinitionsToCreate: [
              {
                name: "conditional_rate"
                active: true
                rateDefinition: {
                  price: {
                    amount: 20.5
                    currencyCode:USD
                  }
                }
                priceConditionsToCreate: {
                  criteria: {
                    amount:100.00
                    currencyCode:USD
                  },
                  operator: GREATER_THAN_OR_EQUAL_TO
                }
              }
            ]
          }
        ]
      }
    }
  )
  {
    profile {
      id
      name
      profileLocationGroups {
        locationGroup {
          id
          locations (first: 1, includeLegacy:true) {
            edges {
              node {
                id
                name
              }
            }
          }
        }
        locationGroupZones (first: 1) {
          edges {
            node {
              zone {
                name
                countries {
                  name
                }
              }
              methodDefinitions (first: 1) {
                edges {
                  node {
                    id
                    name
                    active
                    rateProvider {
                      ... on DeliveryParticipant {
                        id
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
    userErrors {
      field
      message
    }
  }
}

View response

JSON response:

{
  "data": {
    "deliveryProfileCreate": {
      "profile": {
        "id": "gid://shopify/DeliveryProfile/7929912",
        "name": "A conditional profile",
        "profileLocationGroups": [
          {
            "locationGroup": {
              "id": "gid://shopify/DeliveryLocationGroup/6651960",
              "locations": {
                "edges": [
                  {
                    "node": {
                      "id": "gid://shopify/Location/9562054",
                      "name": "Elgin"
                    }
                  }
                ]
              }
            },
            "locationGroupZones": {
              "edges": [
                {
                  "node": {
                    "zone": {
                      "name": "United States",
                      "countries": [
                        {
                          "name": "United States"
                        }
                      ]
                    },
                    "methodDefinitions": {
                      "edges": [
                        {
                          "node": {
                            "id": "gid://shopify/DeliveryMethodDefinition/36077624",
                            "name": "conditional_rate",
                            "active": true,
                            "rateProvider": {}
                          }
                        }
                      ]
                    }
                  }
                }
              ]
            }
          }
        ]
      },
      "userErrors": []
    }
  },
  ...
}

Delivery profiles use cases

It can be useful to retrieve delivery profiles under a variety of scenarios.

Find which delivery profile a product belongs to

The following example uses the variant ID to return the delivery profile ID.

Note

Each variant can belong only to a single delivery profile.

POST /admin/api/unstable/graphql.json

{
  productVariant(id: "gid://shopify/ProductVariant/21788692185193") {
    id
    deliveryProfile {
      id
      name
    }
  }
}

View response

JSON response

{
  "data": {
    "productVariant": {
      "id": "gid://shopify/ProductVariant/21788692185193",
      "deliveryProfile": {
        "id": "gid://shopify/DeliveryProfile/7897144",
        "name": "My Other Fulfillment Service's Profile"
      }
    }
  },
  ...
}

Determine what rates apply to a product

The following example uses the location group and delivery zones to see what rates are associated with a variant's delivery profile:

POST /admin/api/unstable/graphql.json

query {
  productVariant(id: "gid://shopify/ProductVariant/21788698476649") {
    deliveryProfile {
      profileLocationGroups {
        locationGroupZones(first: 3) {
          edges {
            node {
              zone {
                name
                countries {
                  name
                }
              }
              methodDefinitions(first: 3) {
                edges {
                  node {
                    id
                    name
                    methodConditions {
                      id
                      operator
                      conditionCriteria {
                        ... on Weight {
                          value
                        }
                        ... on MoneyV2 {
                          amount
                          currencyCode
                        }
                      }
                    }
                    rateProvider {
                      ... on DeliveryRateDefinition {
                        id
                        price {
                          amount
                          currencyCode
                        }
                      }
                      ... on DeliveryParticipant {
                        id
                        fixedFee {
                          amount
                          currencyCode
                        }
                        percentageOfRateFee
                        participantServices {
                          active
                          name
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response

{
  "data": {
    "productVariant": {
      "deliveryProfile": {
        "profileLocationGroups": [
          {
            "locationGroupZones": {
              "edges": [
                {
                  "node": {
                    "zone": {
                      "name": "Canada",
                      "countries": [
                        {
                          "name": "Canada"
                        }
                      ]
                    },
                    "methodDefinitions": {
                      "edges": [
                        {
                          "node": {
                            "id": "gid://shopify/DeliveryMethodDefinition/36044856",
                            "name": "my_carrier_service_name",
                            "methodConditions": [],
                            "rateProvider": {
                              "id": "gid://shopify/DeliveryParticipant/13697080",
                              "fixedFee": {
                                "amount": "0.0",
                                "currencyCode": "USD"
                              },
                              "percentageOfRateFee": 0,
                              "participantServices": []
                            }
                          }
                        }
                      ]
                    }
                  }
                }
              ]
            }
          }
        ]
      }
    }
  },
  ...
}

Return the rate provider

You can use the following query to return the rate providers that apply to a delivery profile's delivery methods:

POST /admin/api/unstable/graphql.json

query {
  deliveryProfiles(first: 1) {
    edges {
      node {
        profileLocationGroups {
          locationGroupZones(first: 3) {
            edges {
              node {
                methodDefinitions(first: 3) {
                  edges {
                    node {
                      rateProvider {
                        ... on DeliveryRateDefinition {
                          id
                          price {
                            amount
                          }
                        }
                        ... on DeliveryParticipant {
                          id
                          fixedFee {
                            amount
                            currencyCode
                          }
                          percentageOfRateFee
                          participantServices {
                            active
                            name
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

View response

JSON response:

{
  "data": {
    "deliveryProfiles": {
      "edges": [
        {
          "node": {
            "profileLocationGroups": [
              {
                "locationGroupZones": {
                  "edges": [
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13172792",
                                  "price": {
                                    "amount": "8.0"
                                  }
                                }
                              }
                            },
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13205560",
                                  "price": {
                                    "amount": "18.0"
                                  }
                                }
                              }
                            },
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryParticipant/11567160",
                                  "fixedFee": {
                                    "amount": "0.0",
                                    "currencyCode": "USD"
                                  },
                                  "percentageOfRateFee": 0,
                                  "participantServices": []
                                }
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13107256",
                                  "price": {
                                    "amount": "5.0"
                                  }
                                }
                              }
                            }
                          ]
                        }
                      }
                    },
                    {
                      "node": {
                        "methodDefinitions": {
                          "edges": [
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryRateDefinition/13140024",
                                  "price": {
                                    "amount": "18.0"
                                  }
                                }
                              }
                            },
                            {
                              "node": {
                                "rateProvider": {
                                  "id": "gid://shopify/DeliveryParticipant/11534392",
                                  "fixedFee": {
                                    "amount": "0.0",
                                    "currencyCode": "USD"
                                  },
                                  "percentageOfRateFee": 0,
                                  "participantServices": []
                                }
                              }
                            }
                          ]
                        }
                      }
                    }
                  ]
                }
              }
            ]
          }
        }
      ]
    }
  },
  ...
}
